What's New
What's New in v2.4.0
Security Update
CVE-2021-44832
Agent : log4j 2.12.4
Server module : log4j 2.17.1
spring framework : 5.3.20
Important Changes
Hbase schema changed #8348
Bump Flink version (1.7.1 -> 1.14.2) #8550 Upgrade to Flink 1.14.x or higher is recommended
Key Features
Java11 support
#8470 Pinpoint server module no longer supports java8

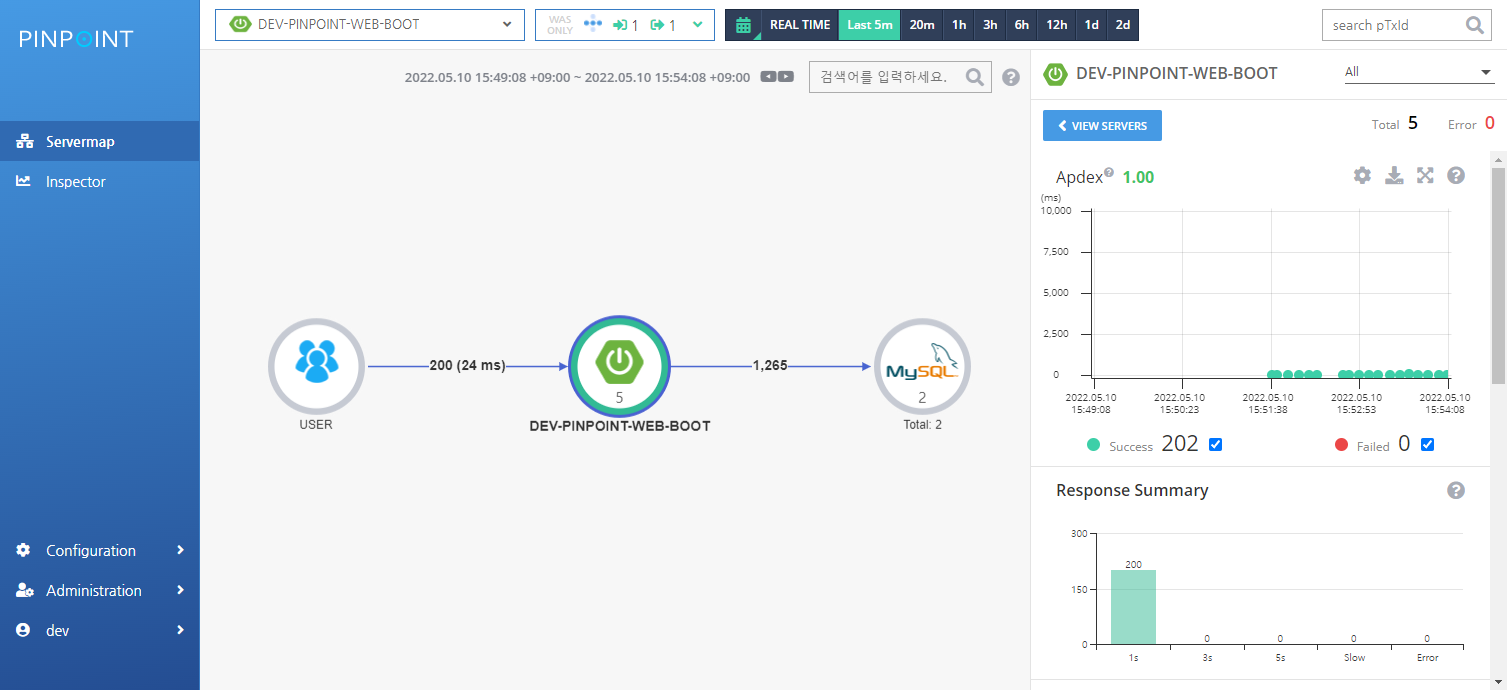

Side Bar UI (experimental)
#8480

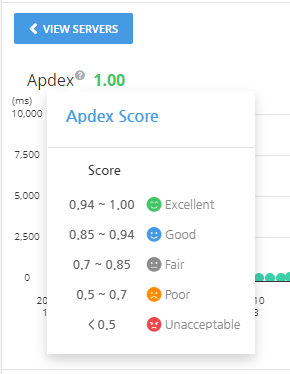

Apdex score
https://github.com/pinpoint-apm/pinpoint/issues/4044

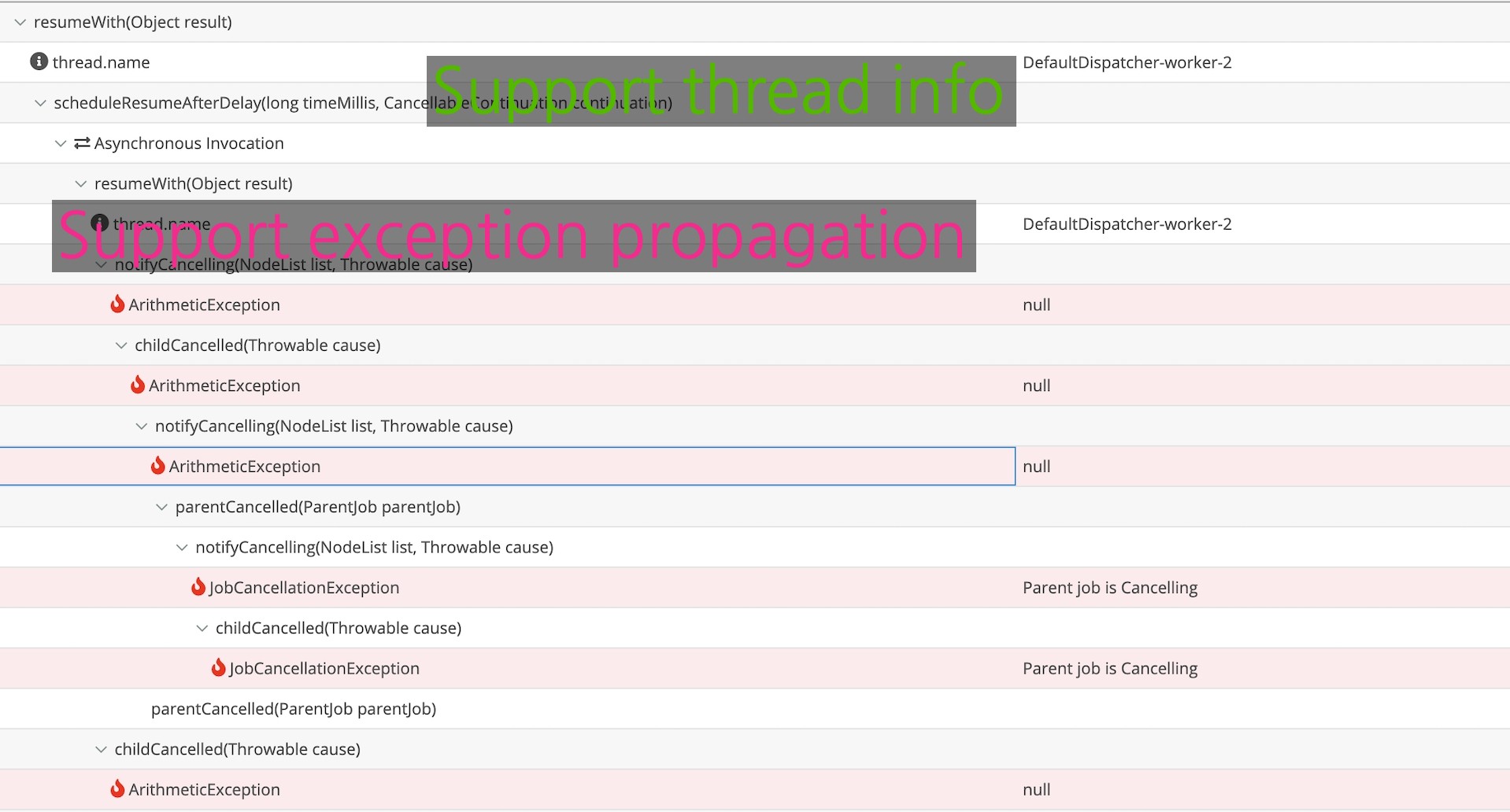

Support Kotlin Coroutines Plugin
#8472

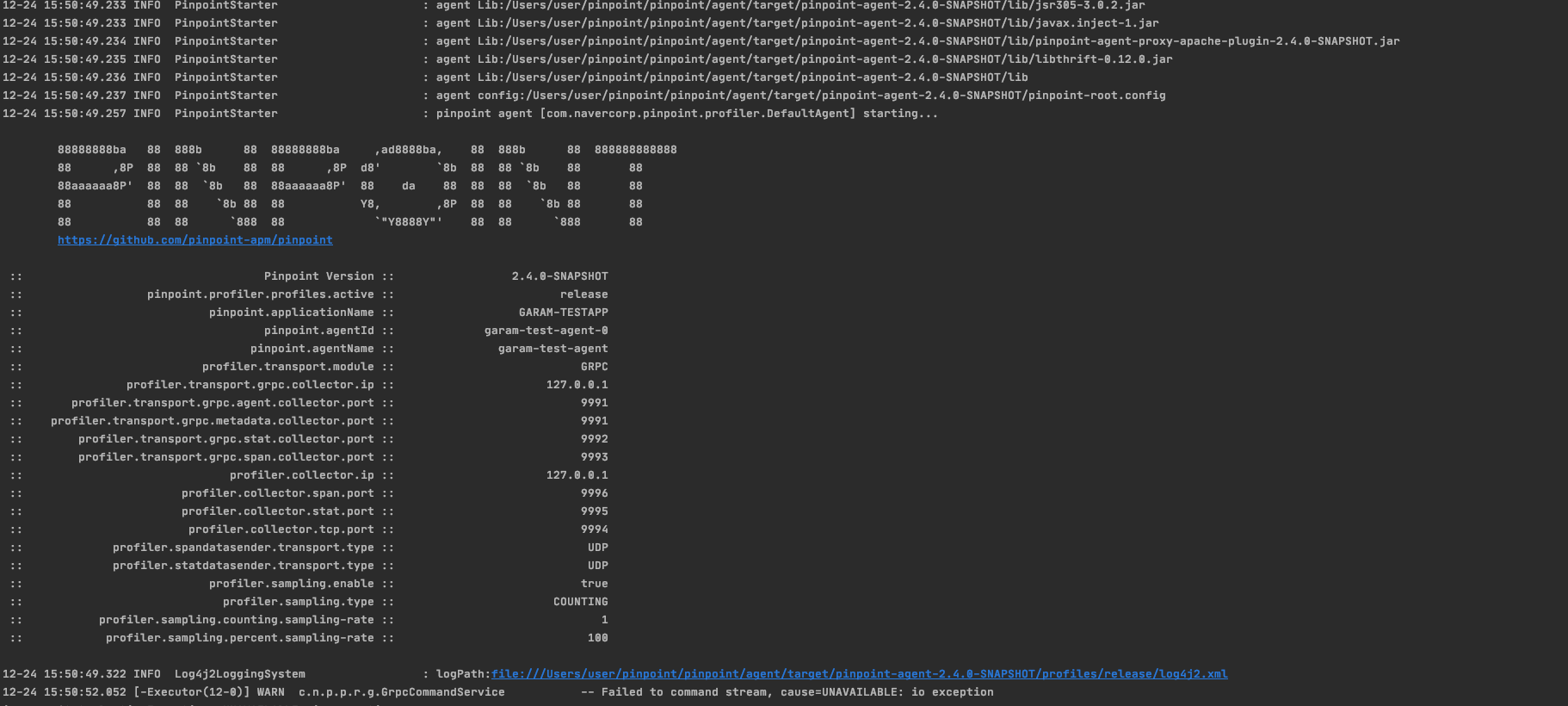

Pinpoint Banner
#8580
Bug Fixes
Fixed a bug where the realtime feature did not work intermittently
#8811 Backport CURATOR-525
Fixed a bug where very long traces were broken
#8597 Fix short overflow of sequence in Span
What's Changed
[#8376] web ui, highlight exception rows in call tree by @yjqg6666 in https://github.com/pinpoint-apm/pinpoint/pull/8377
[#8394] Fix the collector for Hbase2 does not work by @koo-taejin in https://github.com/pinpoint-apm/pinpoint/pull/8396
[#8399] fix broken image link by @feelform in https://github.com/pinpoint-apm/pinpoint/pull/8400
[#8402] Add ServletFilter based ErrorHandler by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8403
[#8372] Replace HTableMultiplexer with BufferedMutator by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8373
Fix show progress when complete in callstack by @koo-taejin in https://github.com/pinpoint-apm/pinpoint/pull/8430
[#6821] Fix servermap instance list factory by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8447
[#8470] Update Java11 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8471
[#8472] Support Kotlin Coroutines Plugin by @koo-taejin in https://github.com/pinpoint-apm/pinpoint/pull/8475
[#8501] Disable unnecessary JNDI by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8502
[#8513] Fix https in jdk-http-plugin by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8514
[#8313] Add null check to kafka header values to prevent NPE by @ga-ram in https://github.com/pinpoint-apm/pinpoint/pull/8527
[#8503] Fix malformed logging configuration for agent by @kjkmadness in https://github.com/pinpoint-apm/pinpoint/pull/8476
[#noissue] [WEB/UI] add webhook url & alias validation; max length by @BillionaireDY in https://github.com/pinpoint-apm/pinpoint/pull/8504
[#8543] Fix app proxy header by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8545
[#8544] Enhanced Pinpoint header validation by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8546
[#8571] Add maven-central-deploy by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8572
[#8480] add global navigation side bar by @BillionaireDY in https://github.com/pinpoint-apm/pinpoint/pull/8481
[#8072] Fix bind.pinpoint api to return json by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8575
[#8564] Update vertx-4.x plugin by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8565
[#8580] Add Pinpoint Banner by @ga-ram in https://github.com/pinpoint-apm/pinpoint/pull/8581
[#8486] Add default configuration for experimental feature by @intr3p1d in https://github.com/pinpoint-apm/pinpoint/pull/8458
[#8589] Correct K unit in memory side by @binDongKim in https://github.com/pinpoint-apm/pinpoint/pull/8592
[#8595] Add agent-level trace limit by sequence by @Kangji in https://github.com/pinpoint-apm/pinpoint/pull/8596
[#8597] Convert Sequence Data Type into Int by @Kangji in https://github.com/pinpoint-apm/pinpoint/pull/8607
[#8614] Support Empty database in MYSQL by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8615
[#8617] Apply Awaitability to testcase by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8618
[#8619] Extract zookeeper cluster module by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8620
[#8374] show date of start time as a tooltip in web call tree by @yjqg6666 in https://github.com/pinpoint-apm/pinpoint/pull/8375
[#8646] Removed permission logic to avoid confusion by @minwoo-jung in https://github.com/pinpoint-apm/pinpoint/pull/8647
[#4044] Add Apdex score in getServerMapData by @intr3p1d in https://github.com/pinpoint-apm/pinpoint/pull/8425
[#8372] Restore return type of TraceDao by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8656
[#8663] Fix to generate DummySpanEvent on stack overflow of callstack by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8664
[#8642] Disable async trace to limit span event by @Kangji in https://github.com/pinpoint-apm/pinpoint/pull/8643
[#8674] Add ArrayArgumentUtils for argument access by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8675
[#noissue] [FE] add cpp icon by @BillionaireDY in https://github.com/pinpoint-apm/pinpoint/pull/8686
[#8684] Remove unnecessary spanlock of cluster manager by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8685
[#noissue] Improved znode debuggability for collector in Zookeeper by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8690
[#8691] Separate hbase connection for batch operation by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8692
[#noissue] Display pointing time in inspector by @binDongKim in https://github.com/pinpoint-apm/pinpoint/pull/8705
[#8699] Add getLambda method by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8700
[#8689] Update reactor plugins by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8707
[#8622] Fix thrift plugin server by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8709
[#8726] Update elasticsearch plugin by @jaehong-kim in https://github.com/pinpoint-apm/pinpoint/pull/8727
[#8755] Refactor Application Metric by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8756
[#8757] Remove duplicate agent metrics by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8760
[#8762] apply throttled logger by @donghun-cho in https://github.com/pinpoint-apm/pinpoint/pull/8751
[#8768] Remove duplicate StatCodec by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8769
[#8771] Refactor Chart component by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8772
[#8778] Apply SummaryStatistics by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8779
[#8780] Add ContentLength Util by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8781
[#8348] Add secondary index to ApplicationTraceIndex by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8349
[#8806] Refactor HashMap for HttpResponse to Response object by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8808
[#8811] Backport CURATOR-525 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8812
[#8813] Remove unnecessary web resources from flink binary by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8814
[#8463] Replace slf4j with log4j2 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8464
[#8834] Remove static isHeaderRecorded field from kafka plugin by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8835
[#8865] Fix inconsistent synchronization in volatile field by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8866
[#8877] Fix ActiveRequest not working by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8880

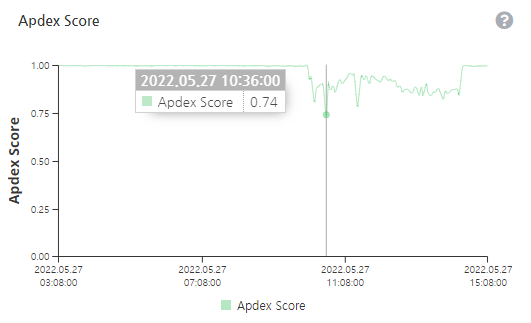

[#8843] Add time series Apdex score chart by @donghun-cho in https://github.com/pinpoint-apm/pinpoint/pull/8844
[#8661] Fix Hbase interceptor plugin to handle versioned getTableName by @intr3p1d in https://github.com/pinpoint-apm/pinpoint/pull/8662
Dependencies
[#8550] Upgrade flink version(1.7.1 -> 1.14.2) by @minwoo-jung https://github.com/pinpoint-apm/pinpoint/issues/8550
[#8509] Bump Log4j 2.17.0 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8530
[#8519] Bump log4j 2.12.3 for JDK7 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8520
[#8577] Fix log4j2 CVE-2021-44832 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8578
[#8491] Fix Log4j2 RCE vulnerability by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8492
[#8407] Upgrade Spring Lib by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8408
[#8734] Update SpringFramework for Spring RCE by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8735
[#8861] update spring-framework 5.3.18 -> 5.3.20 by @donghun-cho in https://github.com/pinpoint-apm/pinpoint/pull/8862
[#8745] Bump commons-compress from 1.20 to 1.21 by @dependabot in https://github.com/pinpoint-apm/pinpoint/pull/8744
[#8747] Bump jackson-databind from 2.12.5 to 2.12.6.1 by @dependabot in https://github.com/pinpoint-apm/pinpoint/pull/8746
[#8753] Bump commons-io from 2.6 to 2.11.0 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8754
[#8785] Bump javax.annotation-api from 1.3.2 to 1.3.5 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8786
[#8791] Bump from javax.activation-api to jakarta.activation-api by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8792
[#8793] Bump from validation-api to jakarta.validation-api by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8794
[#8795] Bump javax.transaction from to 1.1 to 1.3.3 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8796
[#8798] Bump hbase-client from 2.4.2 to 2.4.11 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8799
[#8828] Bump zookeeper from 3.4.14 to 3.5.9 for hbase 2.x by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8829
[#8452] Bump gRpc 1.43.2 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8750
[#noissue] Bump javax.mail from 1.4.7 to jakarta.mail 1.6.7 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8484
[#8722] Fix a Spring 5.3 JDK compatibility issue by @feelform in https://github.com/pinpoint-apm/pinpoint/pull/8723
[#8600] Upgrade mysql-driver 5.1.49 -> 8.0.27 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/6991
[#8602] Bump testcontainers 1.16.2 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8601
[#8222] replace logger pattern automatically by @yjqg6666 in https://github.com/pinpoint-apm/pinpoint/pull/8228
[#8434] Update log4j2 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8435
[#8436] Update ASM 9.2 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8437
[#8438] Update Jackson 2.12.5 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8439
[#8440] Update frontend-maven-plugin 1.12.0 by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8441
[#8452] Update gRpc by @emeroad in https://github.com/pinpoint-apm/pinpoint/pull/8454
New Contributors
Thank you all. If there is someone who was inadvertently excluded, please let me know.
@kjkmadness made their first contribution in https://github.com/pinpoint-apm/pinpoint/pull/8476
@intr3p1d made their first contribution in https://github.com/pinpoint-apm/pinpoint/pull/8458
@Kangji made their first contribution in https://github.com/pinpoint-apm/pinpoint/pull/8596
@donghun-cho made their first contribution in https://github.com/pinpoint-apm/pinpoint/pull/8751
@smilu97 made their first contribution in https://github.com/pinpoint-apm/pinpoint/pull/8860
Full Changelog: https://github.com/pinpoint-apm/pinpoint/compare/v2.3.1...v2.4.0
Upgrade consideration
HBase compatibility table:
2.0.x
not tested
yes
yes
2.1.x
not tested
yes
yes
2.2.x
not tested
yes
yes
2.3.x
not tested
yes
yes
2.4.x
not tested
yes
yes
2.5.x
not tested
yes
yes
Agent compatibility to Collector table:
2.0.x
yes
yes
yes
yes
yes
yes
2.1.x
no
yes
yes
yes
yes
yes
2.2.x
no
no
yes
yes
yes
yes
2.3.x
no
no
no
yes
yes
yes
2.4.x
no
no
no
no
yes
yes
2.5.x
no
no
no
no
no
yes
Additionally, the required Java version to run each Pinpoint component is given below:
2.0.x
6-13
8
8
8
2.1.x
6-14
8
8
8
2.2.x
7-14
8
8
8
2.3.x
7-17
8
8
8
2.4.x
7-18
11
11
11
2.5.x
8-18
11
11
11
Supported Modules
JDK 6+
Supported versions of the * indicated library may differ from the actual version.
6.x
9.x
8.x
9.x
6.x
7.x
4.x
4.x
6.x
8.x
3.3
3.5
10.x
12.x
Jasper
Java Async Thread
OpenWhisk
whisk.core
SpringMVC Framework
spring-webmvc
3.0.7
5.3.6
Spring Web
spring-web
4.1.2
4.3.30
Spring RabbitMQ
spring-rabbit
1.3.3
2.2.16
Spring IBatis
spring-ibatis
2.0.7
2.0.8
Spring MyBatis
mybatis-spring
1.1.0
1.3.3
spring-boot-autoconfigure
spring-webflux
MyBatis
mybatis
3.0.3
3.3.1
hystrix-core
1.4.0
1.5.18
JDKHTTP
Httpclient3
commons-httpclient
3.0
3.1
Httpclient4
httpclient
4.0
4.5.4
Thrift
libthrift
0.9.1
0.14.1
Google HTTP Client
google-http-client
1.19.0
1.39.2
AsyncHttpClient
async-http-client
1.7.24
1.8.17
OkHttp
okhttp
2.0.0
3.3.1
Apache HttpAsyncClient
httpasyncclient
4.0
4.1.3
*Akka HTTP
akka-http_2.12
10.1.0
10.1.x
kafka-clients
0.11.0.1
GRPC
grpc-stub
1.8.0
1.37.0
reactor-core
3.3.0
3.3.1
reactor-netty
0.8.0
0.9.2
Log4j
log4j
1.2.16
1.2.17
Logback
logback-classic
1.0.13
1.2.3
Log4j2
log4j-core
2.0
2.12.1
*Arcus
arcus-java-client
1.7.0
1.11.4
*MsSQL (jTDS)
jtds
1.2.8
*MsSQL
mssql-jdbc
HikariCP
HikariCP-java6
2.3.0
2.3.13
Jackson-mapper-asl
jackson-mapper-asl
1.0.1
1.8.11
Jackson Databind
jackson-databind
2.0.6
2.12.3
MariaDB Connector/J
mariadb-java-client
1.3.0
2.7.2
MongoDB Java Driver
mongodb-driver
3.0.0
3.12.8
bboss-elasticsearch-rest-jdbc
5.6.9
5.8.2
Elasticsearch
elasticsearch-rest-high-level-client
6.0.0
6.8.15
Datastax Java Driver
cassandra-driver-core
2.0.10
3.11.0
Druid
druid
1.0.0
1.2.6
*Cubrid
cubrid-jdbc-driver
8.4.1
10.0.0
*Commons DBCP
commons-dbcp
1.0
1.4
*Commons DBCP2
commons-dbcp2
2.0
2.5.0
*HBase
hbase-client
1.2.6.1
1.2.6.1
*MySQL
mysql-connector-java
5.0
8.x
*Oracle JDBC Driver
ojdbc
*PostgreSQL JDBC Driver
postgresql
jedis
2.4.2
lettuce-core
5.0.0
5.1.2
redisson
3.10.0
3.10.4
Apache CXF
cxf-rt-rs-client
3.0.0
3.4.3
Netty
netty-all
4.1.0
4.1.63
ActiveMQ
activemq-all
5.1.0
5.16.1
rxjava
1.0.0
1.3.8
amqp-client
2.7.0
5.12.0
org.eclipse.paho.client.mqttv3
1.0.2
1.2.5
org.eclipse.paho.mqttv5.client
1.2.5
1.2.5
Gson
gson
1.1
2.8.3
Json
json-lib
1.0
2.2.2
FastJson
fastjson
1.2.10
1.2.76
Dubbo
dubbo
2.5.1
2.6.9
kafka-clients
kafka-clients
0.11.0.0
2.6.1
postgresql
postgresql
9.4.1208
42.2.19
ojdbc8
ojdbc8
12.2.0.1
21.1.0.0
ojdbc10
ojdbc10
19.3.0.0
19.10.0.0
Last updated
Was this helpful?
