What's New

What's New in v2.3.0

Key Features

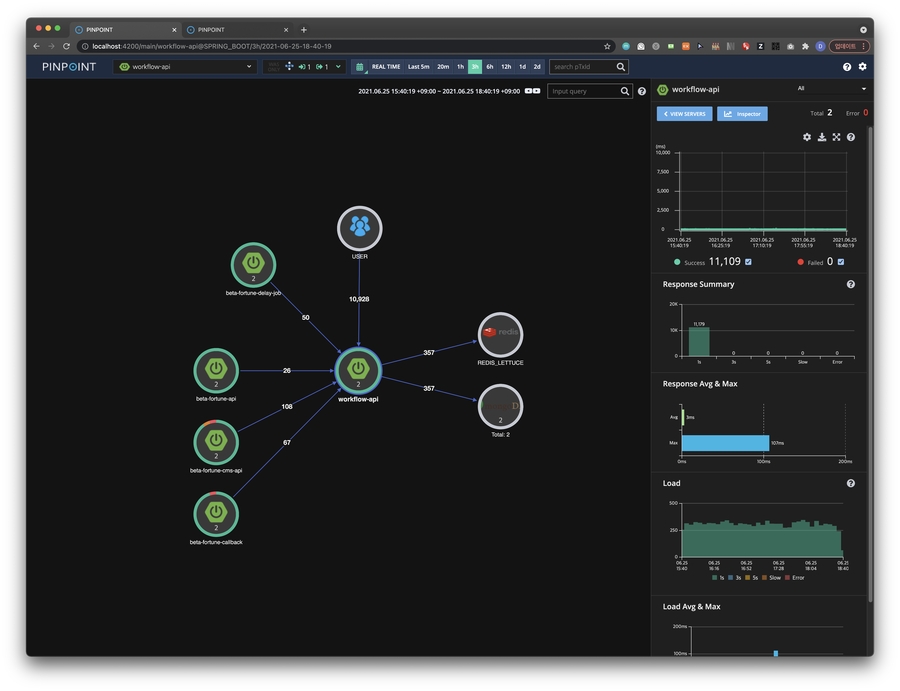

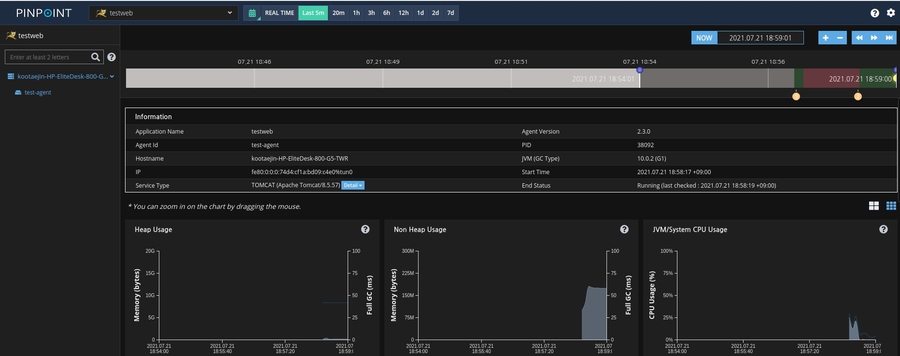

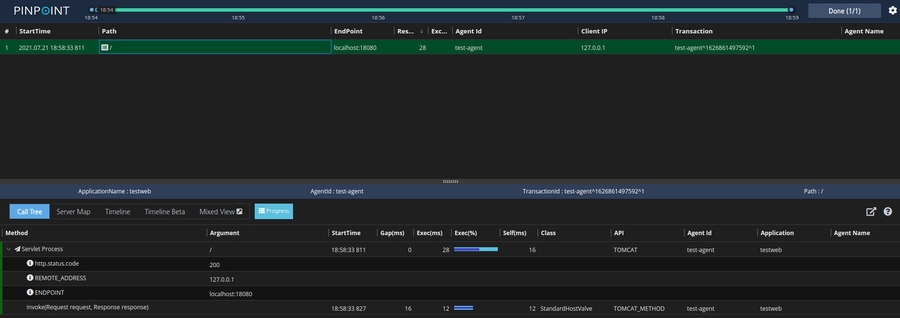

Support Dark Mode

• Servermap

• Distributed callstack

• Inspector

• Issue : #7990

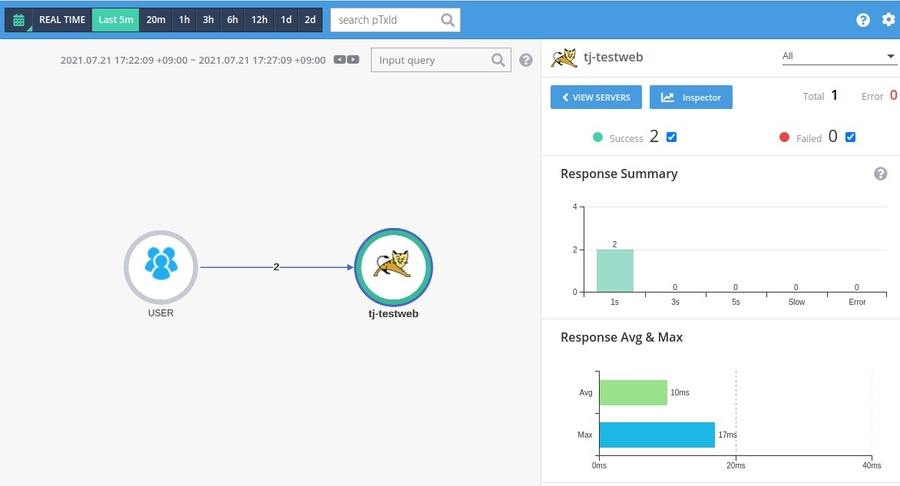

Support Avg & Max response summary

• Servermap

• Issue : #7559 (Thank you @yjqg6666 for your contribution)

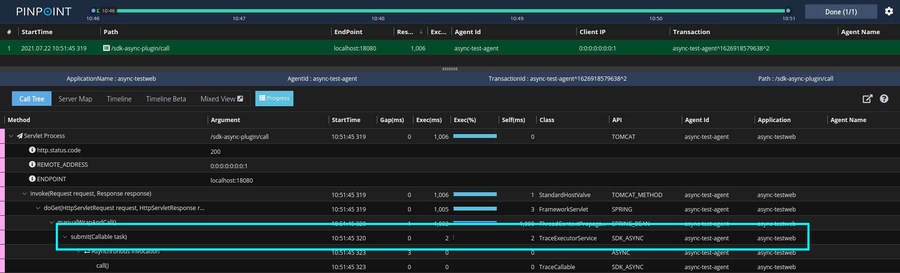

Support Async SDK support

• Distributed callstack

• Document https://github.com/pinpoint-apm/pinpoint/blob/master/agent-sdk/README.md

• Issue : #7654, #7750 (Thank you @zhangyinhao1234 for your contribution)

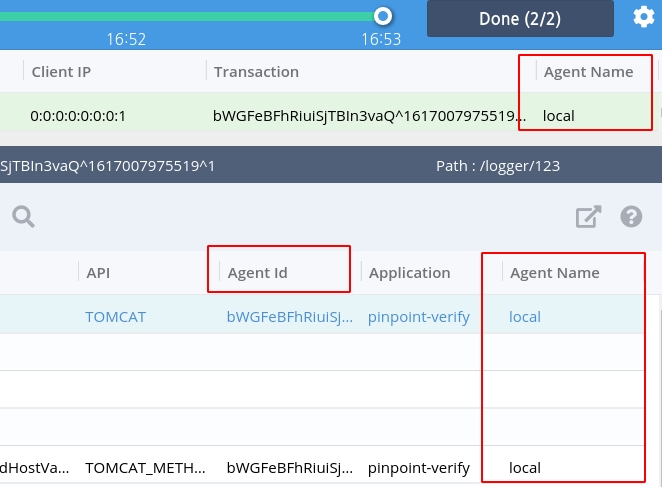

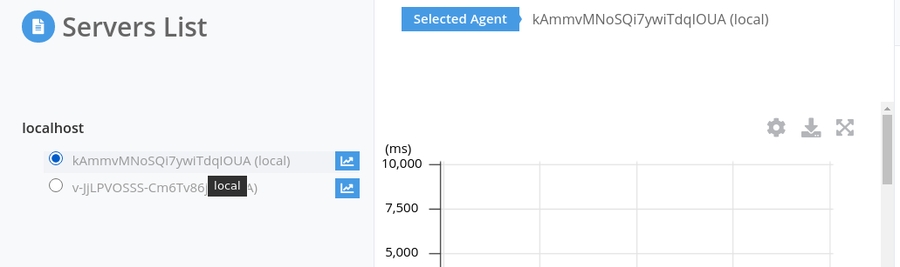

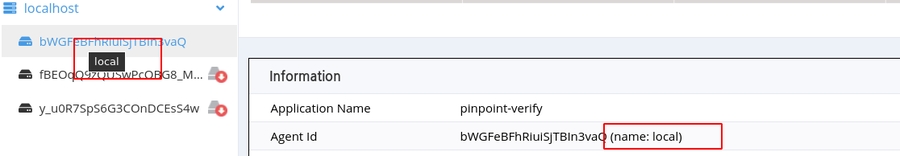

Support Agent Name

• Description Pinpoint has been resolved 24 character limit via agentName.

# Pinpoint OPTS
-javaagent:${PINPOINT_BOOTSTRAP} -Dpinpoint.agentName=pinpoint_has_been_resolved_24_character_limit_agentName -Dpinpoint.applicationName=${APPLICATION_NAME}

• Servermap

• Distributed callstack

• Inspector

• Issue : #7788 (Thank you @yjqg6666 for your contribution)

Separated into batch logic module

In the future, the module is separated so that the batch is operated as a separate process instead of running the batch job in the web. Please refer to the guide document below for how to run batch.

• issue : #7808

• Document https://github.com/pinpoint-apm/pinpoint/blob/v2.3.0/doc/alarm.md

Support webhook notifications for alarms

alarm_figure06

• Document https://github.com/pinpoint-apm/pinpoint/blob/v2.3.0/doc/alarm.md

• Issue : #7142 (Thank you @cwJohnPark, @doll6777, @imbf for your contribution)

Support Hbase2

• Issue : #7808

Release Notes

Plugins

• Plugins issues

Enhancements

• Agent

• Plugin

• Collector

• Web

• Batch

• Flink

• Common

Bugs

• Agent

• Plugin

• Collector

• Web

• Batch

• Test

Cleanup

• Agent

• Plugin

Dependency

• All

Document

• All

Thank You

to whom provided or suggested valuable features whom fixed or reported bugs whom showed interest in Pinpoint and shared it to others.

Thank you all. If there is someone who was inadvertently excluded, please let me know. @brito-wang @cwJohnPark @davide-parini @doll6777 @hoverwinter @imbf @kkojaeh @linux0x5c @messi-gao @stanvl @tankilo @theLazyCat775

Upgrade consideration

HBase compatibility table:

Pinpoint Version	HBase 0.98.x	HBase 1.0.x	HBase 1.2.x	HBase 2.0.x
1.5.x	not tested	yes	not tested	no
1.6.x	not tested	not tested	yes	no
1.7.x	not tested	not tested	yes	no
1.8.x	not tested	not tested	yes	no
2.0.x	not tested	not tested	yes	optional

Agent compatibility to Collector table:

Agent Version	Collector 1.5.x	Collector 1.6.x	Collector 1.7.x	Collector 1.8.x	Collector 2.0.x
1.5.x	yes	yes	yes	yes	yes
1.6.x	not tested	yes	yes	yes	yes
1.7.x	no	no	yes	yes	yes
1.8.x	no	no	no	yes	yes
2.0.x	no	no	no	no	yes

Additionally, the required Java version to run each Pinpoint component is given below:

Pinpoint Version	Agent	Collector	Web
1.5.x	6-8	7-8	7-8
1.6.x	6-8	7-8	7-8
1.7.x	6-8	8	8
1.8.0	6-10	8	8
1.8.1+	6-11	8	8
2.0.x	6-11	8	8

Supported Modules

• JDK 6+

• Supported versions of the * indicated library may differ from the actual version.

Title	Instrumented Library	Min	Max	Comment
Tomcat		6.x	9.x
Jetty		8.x	9.x
JBoss		6.x	7.x
Resin		4.x	4.x
Websphere		6.x	8.x
Vertx		3.3	3.5
Weblogic		10.x	12.x
Undertow
Undertow Servlet
Jasper
Java Async Thread
OpenWhisk	whisk.core
SpringMVC Framework	spring-webmvc	3.0.7	5.3.6
Spring Web	spring-web	4.1.2	4.3.30
Spring RabbitMQ	spring-rabbit	1.3.3	2.2.16
Spring IBatis	spring-ibatis	2.0.7	2.0.8
Spring MyBatis	mybatis-spring	1.1.0	1.3.3
*Spring Boot	spring-boot-autoconfigure
*Spring Webflux	spring-webflux
MyBatis	mybatis	3.0.3	3.3.1
Hystrix	hystrix-core	1.4.0	1.5.18
JDKHTTP
Httpclient3	commons-httpclient	3.0	3.1
Httpclient4	httpclient	4.0	4.5.4
Thrift	libthrift	0.9.1	0.14.1
Google HTTP Client	google-http-client	1.19.0	1.39.2
AsyncHttpClient	async-http-client	1.7.24	1.8.17
OkHttp	okhttp	2.0.0	3.3.1
Apache HttpAsyncClient	httpasyncclient	4.0	4.1.3
*Akka HTTP	akka-http_2.12	10.1.0	10.1.x
*Kafka	kafka-clients	0.11.0.1
GRPC	grpc-stub	1.8.0	1.37.0
*Reactor	reactor-core	3.3.0	3.3.1
*Reactor Netty	reactor-netty	0.8.0	0.9.2
Log4j	log4j	1.2.16	1.2.17
Logback	logback-classic	1.0.13	1.2.3
Log4j2	log4j-core	2.0	2.12.1
*Arcus	arcus-java-client	1.7.0	1.11.4
*MsSQL (jTDS)	jtds	1.2.8
*MsSQL	mssql-jdbc
HikariCP	HikariCP-java6	2.3.0	2.3.13
Jackson-mapper-asl	jackson-mapper-asl	1.0.1	1.8.11
Jackson Databind	jackson-databind	2.0.6	2.12.3
MariaDB Connector/J	mariadb-java-client	1.3.0	2.7.2
MongoDB Java Driver	mongodb-driver	3.0.0	3.12.8
Elasticsearch	bboss-elasticsearch-rest-jdbc	5.6.9	5.8.2
Elasticsearch	elasticsearch-rest-high-level-client	6.0.0	6.8.15
Datastax Java Driver	cassandra-driver-core	2.0.10	3.11.0
Druid	druid	1.0.0	1.2.6
*Cubrid	cubrid-jdbc-driver	8.4.1	10.0.0
*Commons DBCP	commons-dbcp	1.0	1.4
*Commons DBCP2	commons-dbcp2	2.0	2.5.0
*HBase	hbase-client	1.2.6.1	1.2.6.1
*MySQL	mysql-connector-java	5.0	8.x
*Oracle JDBC Driver	ojdbc
*PostgreSQL JDBC Driver	postgresql
*Redis	jedis	2.4.2
*Redis	lettuce-core	5.0.0	5.1.2
*Redis	redisson	3.10.0	3.10.4
Apache CXF	cxf-rt-rs-client	3.0.0	3.4.3
Netty	netty-all	4.1.0	4.1.63
ActiveMQ	activemq-all	5.1.0	5.16.1
RxJAVA	rxjava	1.0.0	1.3.8
RabbitMQ	amqp-client	2.7.0	5.12.0
Paho MQTT	org.eclipse.paho.client.mqttv3	1.0.2	1.2.5
Paho MQTT	org.eclipse.paho.mqttv5.client	1.2.5	1.2.5
Gson	gson	1.1	2.8.3
Json	json-lib	1.0	2.2.2
FastJson	fastjson	1.2.10	1.2.76
Dubbo	dubbo	2.5.1	2.6.9
kafka-clients	kafka-clients	0.11.0.0	2.6.1
postgresql	postgresql	9.4.1208	42.2.19
ojdbc8	ojdbc8	12.2.0.1	21.1.0.0
ojdbc10	ojdbc10	19.3.0.0	19.10.0.0
